Inaccurate spatial planning in commercial real estate carries significant operational risks. A miscalculation of mere inches can result in lost headcount capacity, fire code violations, or unusable collaborative zones. Facility managers and operations directors must balance maximum floor plate density with employee ergonomics, fire safety egress, and ADA compliance. Relying on residential or generalized desk dimensions inevitably leads to procurement errors and layout bottlenecks.
This guide serves as the definitive framework for translating raw office table measurements into scalable, compliant, and highly functional commercial layouts. By applying precise spatial metrics, you can optimize every square foot of your facility without compromising safety or productivity. We will break down the exact clearances, workstation footprints, and modular strategies required to execute a flawless floor plan.
Different roles require different surface areas. Over-allocating space wastes valuable real estate, while under-allocating disrupts daily productivity. Establishing a standardized measurement baseline for each workstation type is the first step in effective layout planning. You have to look at the actual usable surface versus the gross footprint.
Industry standard dimensions for benching systems typically run 48, 60, or 72 inches wide by 24 or 30 inches deep (120/150/180 cm wide by 60/75 cm deep). Modern office environments have largely shifted from 30-inch depths to 24-inch depths. The widespread adoption of flat-screen monitors and articulating monitor arms eliminates the need for deep CRT monitor clearances, allowing facilities to reclaim six inches of depth per workstation. Across a floor plate of 200 desks, that six-inch reduction reclaims 100 linear feet of usable space.
Continuous benching systems utilize shared structural legs. This design choice reduces the overall footprint compared to standalone desks. When calculating continuous runs, subtract the width of redundant legs to determine the true linear footprint. For example, a run of four 60-inch desks with shared 2-inch legs will measure 234 inches overall, not 240 inches. This distinction matters when fitting runs between structural columns or perimeter walls.
Private office desks demand larger footprints, typically starting at 72 inches by 36 inches (180 x 90 cm). L-shaped and U-shaped configurations optimize corner real estate. They maximize usable surface area for multitasking without significantly expanding the central layout footprint, keeping the center of the room open for guest seating.
When floating a desk in the center of a room, strict clearance rules apply. Leave at least 30 inches (76 cm) between the desk edge and the back wall or credenza. On the visitor side, allow 48 to 60 inches (122 to 152 cm) for guest seating and comfortable approach angles. If the private office includes a secondary meeting table, ensure a minimum 36-inch circulation path between the primary desk and the meeting chairs.
Ergonomic compliance requires height-adjustable desks to feature a vertical measurement range of 22 to 48 inches (56 to 122 cm). Planners often overlook the hidden spatial requirements of these units. Moving parts require collision clearances to prevent crushing adjacent storage units. Monitor arms need swing space, and cable management umbilical tracks require dedicated vertical channels that do not snag during height transitions.
When specifying height-adjustable units in a back-to-back benching layout, you must account for the pinch point between opposing monitors. A minimum 2-inch gap between the back edges of opposing work surfaces prevents monitor arms from colliding when one user stands and the other sits.
Moving from individual focus work to group dynamics requires different measurement formulas based on occupancy limits and interaction styles. Meeting spaces fail when planners prioritize table size over human circulation.

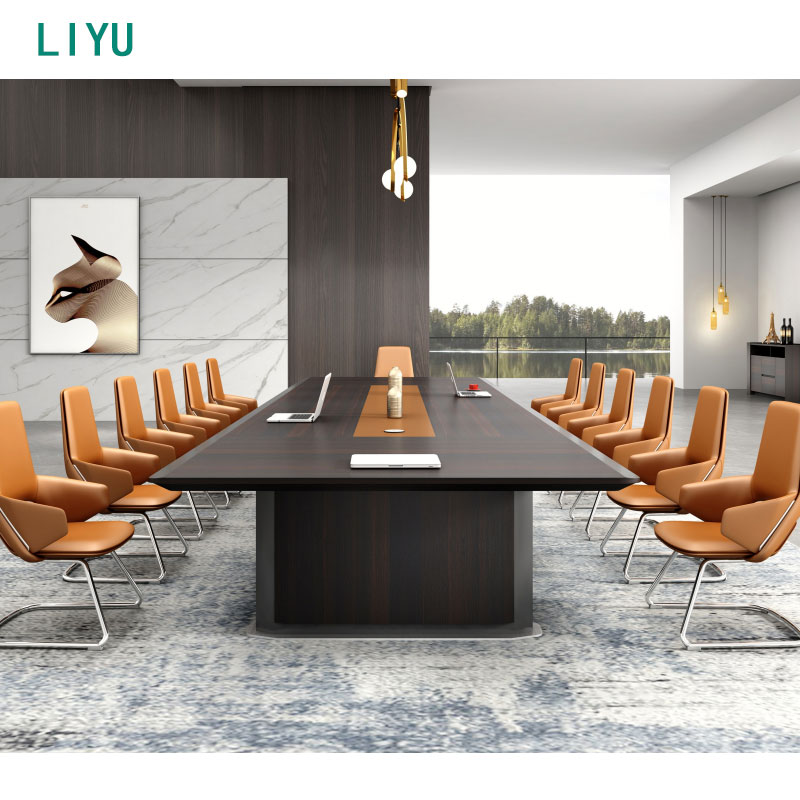

Seating capacity calculations rely on a standard formula: allocate 30 to 36 inches (76 to 91 cm) of table perimeter per person. Standard conference tables scale accordingly. An 8-foot table comfortably seats 6 to 8 people, while a 12-foot table accommodates 10 to 12 participants. Do not squeeze chairs into the corners of rectangular tables; corner seats lack adequate knee clearance and interfere with adjacent users.
Perimeter clearance is critical. Maintain a minimum of 48 inches (122 cm) between the table edge and the wall or credenza. This ensures participants can push back their chairs and allows secondary circulation behind seated individuals. If the room features a presentation screen, the distance from the screen to the first seated participant should be at least twice the diagonal width of the display.
A dedicated seminar room table setup focuses heavily on front-facing sightlines. Table depth selection depends on the curriculum. Use 18-inch (46 cm) deep tables for laptop or tablet-only sessions. Opt for 24-inch (60 cm) deep tables when participants need space for laptops alongside physical reference materials.
Row-to-row spacing must allow for instructor circulation and rapid participant egress. Maintain at least 36 inches (90 cm) between the back of one chair and the front edge of the table behind it. For high-capacity seminar rooms, local fire codes may dictate wider aisles depending on the total occupant load.
Small-scale collaborative tables typically measure 36 to 48 inches (90 to 120 cm) in round or square configurations. Integrating counter-height or bar-height tables (36 to 42 inches / 91 to 107 cm high) facilitates brief, stand-up meetings. These elevated surfaces promote active posture and reduce the footprint required for bulky lounge seating.
Evaluating furniture that must serve multiple functions within a single square footage allocation requires a focus on adaptability and storage metrics. Static layouts waste space when rooms sit empty.
The most common training table dimensions are 60 or 72 inches wide by 24 inches deep (150/180 cm wide by 60 cm deep). The 24-inch depth serves as the commercial standard for training environments because it perfectly balances the physical footprint with adequate usable space for adult learners. A 60-inch table accommodates two users comfortably, while a 72-inch table can fit three users in a high-density scenario.
When selecting modular training furniture, evaluate the storage footprint of nesting tables. Calculate how many inches each additional nested table adds to the total storage depth. Typically, the first table requires 24 inches of depth, and each subsequent nested table adds 5 to 7 inches. Caster dimensions and locking mechanisms also impact overall height and stability measurements.
Converting a room from a U-shape training setup to a pod-based collaborative setup using the same tables requires precise layout formulas. Ensure the room dimensions can accommodate the widest configuration without blocking egress doors.
| Configuration Type | Primary Use Case | Space Required Per User (Sq Ft) | Recommended Table Size |
|---|---|---|---|
| Classroom Rows | Lecture, Testing | 15 - 20 | 60" x 24" (2 users) |
| U-Shape | Discussion, Presentation | 25 - 30 | 72" x 24" (2-3 users) |
| Collaborative Pods | Group Work, Workshops | 20 - 25 | 60" x 24" (pushed together) |
Ground your layout strategy in architectural standards, building codes, and ergonomic science. Proper office workspace planning relies on strict adherence to these clearances. Ignoring them leads to failed inspections and unusable spaces.
The absolute minimum push-back clearance behind a desk is 36 inches (90 cm). However, a comfortable circulation clearance requires 48 inches (120 cm). Back-to-back seating arrangements demand a combined clearance of 60 to 72 inches (152 to 183 cm) between desk edges to prevent chairs from colliding when both users push back simultaneously.
Primary circulation paths must measure a minimum of 44 to 48 inches (112 to 122 cm) wide. Secondary aisles between desk pods require a minimum of 36 inches (90 cm) in width. High-density benching layouts must strictly adhere to fire code implications, ensuring egress routes remain unobstructed at maximum occupancy. Dead-end corridors exceeding 20 feet are generally prohibited in commercial office layouts.
ADA regulations mandate a 60-inch (152 cm) turning radius for wheelchair accessibility in private offices and meeting rooms. Table heights must fall between 28 and 34 inches (71 to 86 cm). Knee clearance must provide a minimum of 27 inches in height, 30 inches in width, and 19 inches in depth (68 x 76 x 48 cm). You cannot place structural table legs or power modules within this required knee clearance zone.
To calculate how many desks can fit in a commercial space, use the following formula:
Total Usable Desks = (Total Usable Square Footage × (1 - Circulation Factor)) / (Total Footprint of Desk Unit + Clearance Area)
The standard BOMA Circulation Factor typically deducts 30% to 40% for primary and secondary corridors.
Decision frameworks for space planners must align physical measurements with operational goals. You are not just buying furniture; you are defining how people work.
Reducing desk width from 60 inches to 48 inches increases headcount capacity but may decrease employee satisfaction. Determine when high-density layouts are appropriate by analyzing hybrid work attendance ratios. If employees only use desks for short, focused bursts, smaller footprints suffice. For roles requiring extensive document review or multiple monitors, 60-inch or 72-inch desks remain necessary.
Under-desk power troughs, CPU holders, and cable trays severely impact usable knee clearance. Dual-monitor setups require wider surface areas to maintain proper focal depth compared to laptop-only workstations. Always measure the clearance beneath the desk after technology accessories are installed. A desk that meets ADA knee clearance on paper might fail once a bulky cable tray is mounted beneath the surface.
Standardizing table sizes across an entire floor plate allows for rapid reconfiguration. Uniform dimensions mean facility teams can swap desks between departments without buying new assets or redesigning the floor plan. If you mix 48-inch, 54-inch, and 60-inch desks randomly, you lose the ability to reconfigure benching runs cleanly.
Real-world execution often reveals pitfalls in commercial furniture procurement. A plan that looks perfect in CAD can fail during installation.
Ordering furniture based on room perimeter rather than usable square footage leads to overcrowding. Failing to account for baseboard heating, structural columns, or floor core locations can render a perfectly measured desk unusable. Always verify field measurements against architectural drawings before finalizing procurement orders. Floor cores for power and data must align precisely with the table's structural legs or umbilical drops; missing this alignment by two inches requires expensive core drilling or unsightly surface-mounted raceways.
A: The modern commercial standard is 24 inches deep. This accommodates laptops and flat-screen monitors while saving floor space compared to legacy 30-inch deep desks.
A: You need an absolute minimum of 36 inches of clearance behind a desk to push back a chair. For comfortable movement and circulation, 48 inches is highly recommended.
A: ADA standards require a minimum knee clearance of 27 inches high, 30 inches wide, and 19 inches deep beneath the work surface.
A: Allocate 30 to 36 inches of table perimeter for each person. Ensure you also leave 48 inches of clearance between the table edge and the walls.
A: Nesting tables feature flipping tops that allow them to stack horizontally. This drastically reduces their storage footprint, allowing a single room to quickly convert from a classroom to an open space.
